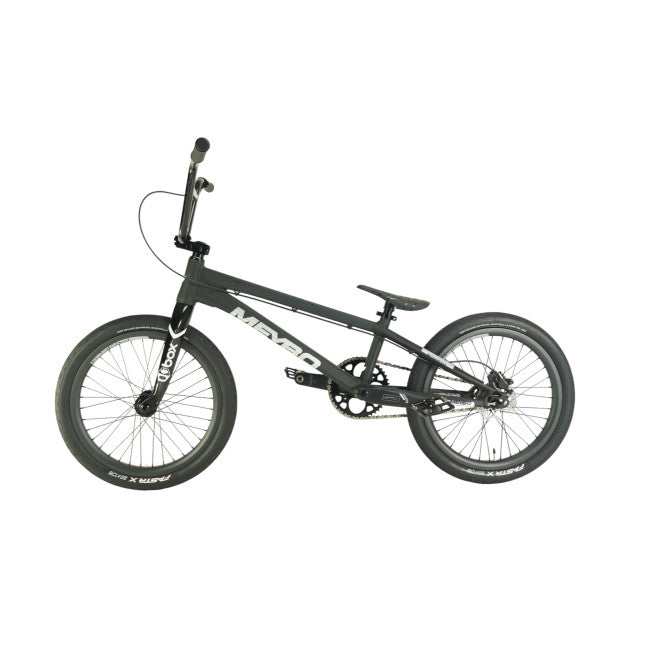

Meybo Patron Pro XXXL 22.5 BMX Race Bike-Matte Black/Shiny Grey - 1

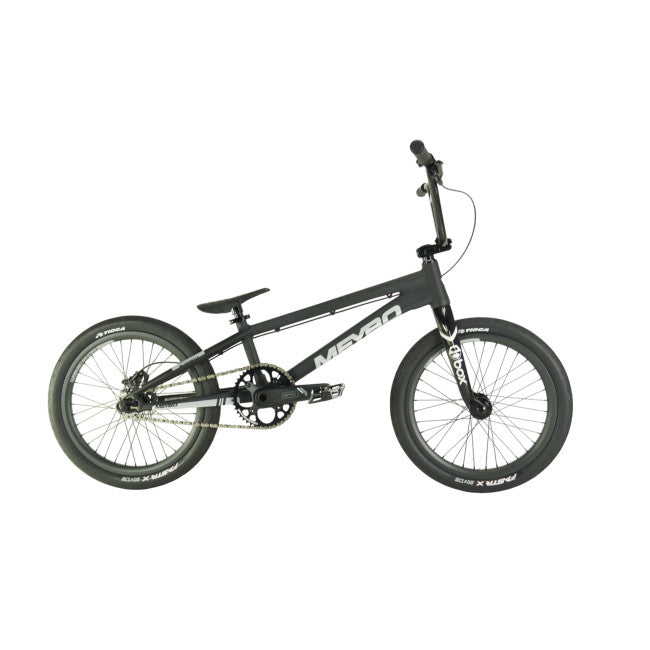

Meybo Patron Pro XXXL 22.5 BMX Race Bike-Matte Black/Shiny Grey - 2

Meybo Patron Pro XXXL 22.5 BMX Race Bike-Matte Black/Shiny Grey

Meybo
$2,199.99
Secure Checkout

About This Product: Meybo Patron Pro XXXL 22.5 BMX Race Bike-Matte Black/Shiny Grey

The Meybo Patron Pro XXXL 22.5 BMX Race Bike-Matte Black/Shiny Grey is a premium race bike built with components made for racing right out of the box. With the popular Holeshot frame as its foundation, the Meybo Patron offers lightweight responsive handling and efficient power transfer all around. The addition of carbon Box One forks and carbon SD rims means even more weight reduction and improved performance. High-end components from trusted brands fill out the rest of the Meybo Patron Race Bike. Tioga Fastr-X tires provide the perfect surface for ultimate speed and the Wellgo LU-313 platform pedals are made with ball bearings for smooth pedal action. High-quality Shimano MT501 hydraulic brakes as well as tried and true SD parts like SD Ace Hubs and the SD Pro 4-hole crankset round out the championship-ready Meybo Patron so you can get out there and get racing.

NOTE: As with any complete bike, J&R Bicycles recommends that you have a professional bicycle store build your bike. Bikes ordered through mail-order come partially assembled and need to be inspected and assembled by a bicycle mechanic. Failure to do so may void the manufacturer's warranty. Manufacturer's warranties differ for every brand. You can check the brand's website for warranty information.

SPECIFICATIONS

  • FORK: BOX One X5 carbon Tapered Fork 20mm through axle
  • HEADSET: FSA Sealed Full Integrated Tapered Headset
  • HANDLEBAR: SD cr-mo 8" pro Handlebar
  • STEM: SD CNC Stem 11/8" 50mm
  • GRIPS: SD 130 mm lock on grips
  • BRAKE LEVER: Shimano MT501 Hydraulic Lever
  • BRAKE: Shimano MT501 Hydraulic Caliper
  • FRONT HUB: SD Ace Pro Hub 36H 20mm through axle
  • REAR HUB: SD Ace Pro Cassette Disc Hub 36H 6 Pawls 180 clicks 15mm Trough Axle
  • SPOKES: Spokes Black
  • NIPPLES: Nipples Alloy Black
  • FRONT RIM: SD M58 20x 1.75 Carbon Rim 25mm
  • REAR RIM: SD M58 20x 1.75 Carbon Rim 25mm
  • FRONT TIRE: Tioga Fastr-X 20x 1.75 Wired
  • REAR TIRE: Tioga Fastr-X 20x 1.75 Wired
  • SEAT: Box Two pro seat 27.2 black
  • SEAT CLAMP: SD qr clamb 31.8 black
  • CRANKSET: SD Pro Hollow crankset 4hole, outboard bearings 175mm
  • BRACKET: SD hollow 24mm Euro, outboard bearings
  • PEDALS: Wellgo LU-313 platform
  • FRONT SPROCKET: SD CNC 6061 Chainring V2 4 Hole 44T Black
  • COG: Cog 16T
  • CHAINRING BOLTS: Black Steel
  • CHAIN: KMC K1 3/32 Silver/Black

GEOMETRY

  • TOP TUBE RIDER AREA: 22.44"
  • DOWN TUBE: 22.28"
  • CHAINTSTAY: 15.35"
  • HEAD TUBE ANGLE: 74.0°
  • SEAT POST ANGLE: 71.0°
  • HEAD TUBE SIZE FULL INTEGRATED: Tapered 1 1/8" - 1.5"
  • SEAT POST SIZE: 27.2 mm
  • DROPOUT: 15 mm
  • BRACKET: BB30
  • DISC BRAKE ONLY: Postmount

IMAGE NOTE: Image is showing colorway and may not be size size specific. You will get the item in the size you order.

Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.

Meybo Bike Sizing Chart

Subrosa Bike Sizing Chart

Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE HEIGHT TYPICAL AGE
FRAME/BIKE SIZE: MICRO HEIGHT: 3' - 3'7" TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI HEIGHT: 3'4" - 4' TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR HEIGHT: 3'10" - 4'5" TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT HEIGHT: 4'2" - 4'9" TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL HEIGHT: 4'6" - 5'2" TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO HEIGHT: 4'9" - 5'7" TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL HEIGHT: 5'6" - 6'1" TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL HEIGHT: 5'9" - 6'5" TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL HEIGHT: 6'3" - 6'9" TYPICAL AGE:
